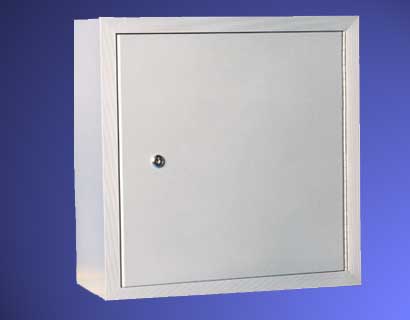

Smc Optic Fiber Distribution Box
It Compliant with ISO 9001:2000, ISO 14001:2001 and TLC certification
Smc Distribution Box:
we are a professional to make Fiber Optic distribution Frame, Integrated Distribution cabinet for more than 20 years with good quality & reasonable price. Now we are the mainly supplier of Telecom, CNC, CUC, CATV in China with 20 provinces.
Specification:
SMC distribution box is suitable for both single and ribbon fiber cable, special suitable for indoor or outdoor optical terminal in optical fiber system & FTTH
Features:
1. Compliant with ISO 9001:2000, ISO 14001:2001 and TLC certification
2. Cabinets are made as the standard of IP65 . It can endure climate changes and adverse environment.
3. Box body is made of SMC(sheet moulding compound)
4. It is the combination of three functions: Optical fusion, store and distribution
5. Adapter is installed with a certain angle. Maintenance is easy and transmission loss is low.
Environment conditions:
Environment temperature: |
from -25°C to +40°C |
Storage temperature: |
from -25°C to +55°C |
Air pressure: |
70kpa -- 106kpa |
Return loss: |
FC/PC ≥458DB;FU/UPC≥55DB;FC/APC≥65DB |
Mating cycles: |
>1000times |
Working wavelength: |
850nm,1310nm,1550nm |
Technical parameters:
Model |
Size (H×W×D)
(mm) |
Capacity
(core) |
Material |
MH-MPX.AT.J01 |
2600×360×450 |
384 |
SMC(sheet moulding compound) |
MH-MPX.FS.A01 |
2600×600×300 |
100 |
SMC(sheet moulding compound) |
MH-GPX.SM.A01 |
2600×520×4500 |
384 |
SMC(sheet moulding compound) |
HM-GPX.SM.A02 |
2200×520×450 |
352 |
SMC(sheet moulding compound) |
HM-GPX.SM.B01 |
2600×480×225 |
192 |
SMC(sheet moulding compound) |
